Raspberry Pi: Understanding GPIO Pins in the System Context

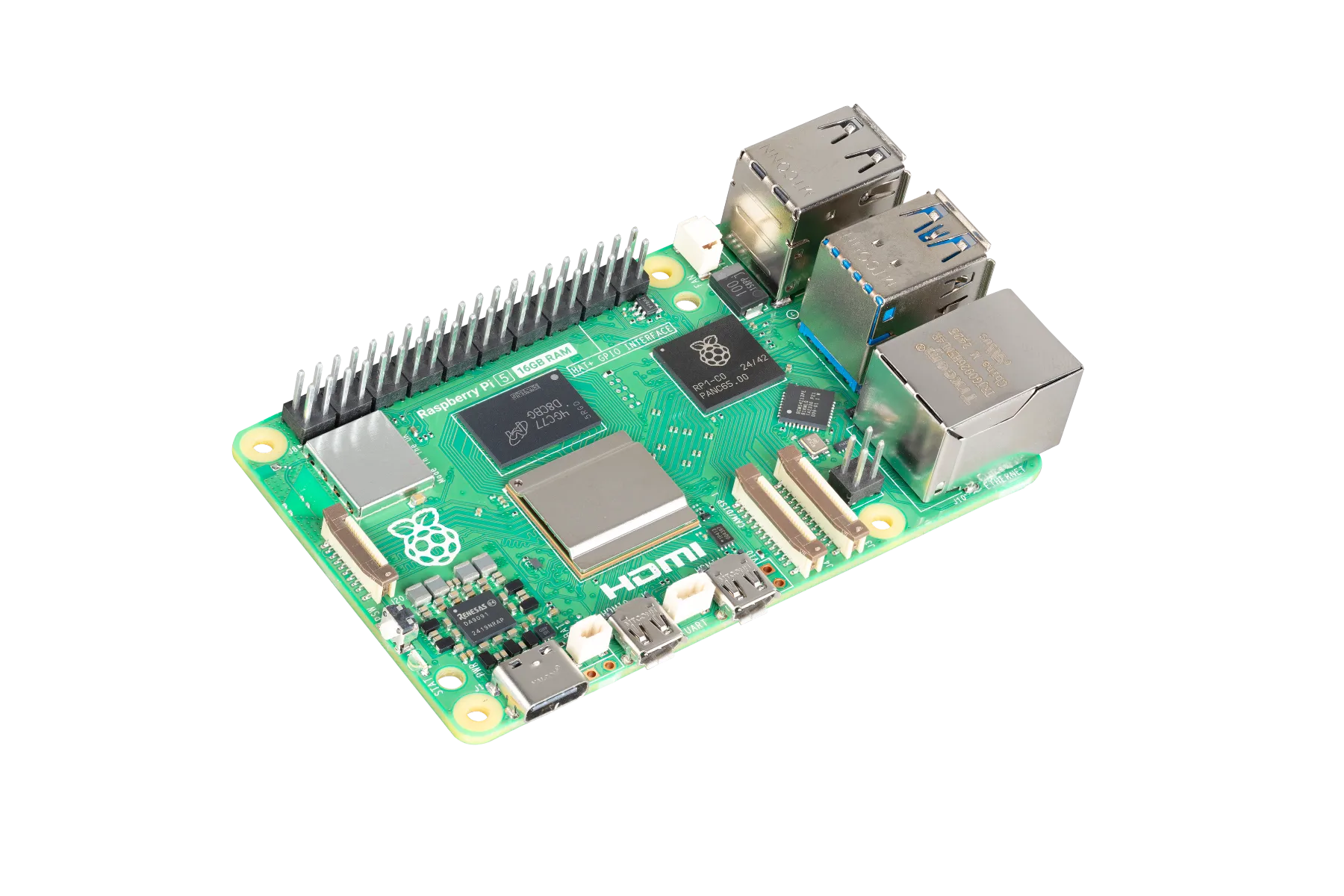

The Raspberry Pi Rocks!

The Raspberry Pi has an advanced system context to access GPIO pins in the context. Consider:

  • /dev/gpiochip0  is a registered linux device just like your hard drive etc.
  • We request access via ioctl and by using open just like a file handle. Here is some example code  - which drives all pins high and all pins low.

Review of GPIO Pin Driving on the Raspberry Pi Zero

The Raspberry Pi Zero is based on the Broadcom BCM2835 system-on-chip. Its 40-pin GPIO header provides access to 26 user-configurable GPIO lines (BCM numbering 2 through 27), each capable of operating at 3.3 V logic levels. A pin is driven HIGH when its output is set to logic 1 (approximately 3.3 V) and LOW when set to logic 0 (0 V).

From user-space Linux applications, GPIO control is performed through the modern GPIO character device interface (/dev/gpiochip0), which is the kernel-supported, non-deprecated method. The process is as follows:

  1. Open the character device file.
  2. Issue an ioctl request to claim the desired GPIO lines as outputs, optionally specifying an initial value.
  3. Repeatedly issue ioctl calls to set the line values (HIGH or LOW).
  4. Release the lines and close the device on exit.

This interface ensures proper resource management, avoids deprecated sysfs paths, and works reliably on the Raspberry Pi Zero without additional libraries beyond standard kernel headers. Direct register access via memory mapping is possible but unnecessary for this use case and carries higher risk of system instability.

Safety Warning
Driving all GPIO pins simultaneously can cause excessive current draw or damage if external circuitry is attached. Ensure no sensitive hardware is connected, and always verify your setup with a logic analyzer that shares a common ground reference with the Raspberry Pi Zero (as resolved in your previous measurement issue).

C Program – Continuous HIGH/LOW Toggling with 1-Second Intervals

The following program claims all standard user GPIO pins (BCM 2–27) as outputs, then enters an infinite loop that drives them HIGH for 1 second, followed by LOW for 1 second. It includes a SIGINT handler (Ctrl+C) for graceful cleanup.

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <fcntl.h>
#include <string.h>
#include <errno.h>
#include <sys/ioctl.h>
#include <linux/gpio.h>
#include <signal.h>

#define HOLD_TIME_SECONDS 1

// Standard user-accessible GPIO pins (BCM numbering) on Raspberry Pi Zero
const int gpio_pins[] = {
    2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17,
    18, 19, 20, 21, 22, 23, 24, 25, 26, 27
};

const int num_pins = sizeof(gpio_pins) / sizeof(gpio_pins[0]);

static int gpio_fd = -1;          // GPIO chip file descriptor
static int line_fd = -1;          // Line handle file descriptor
static int running = 1;

// Signal handler for graceful shutdown
static void sigint_handler(int sig) {
    (void)sig;
    running = 0;
}

int main(void) {
    struct gpiohandle_request req;
    struct gpiohandle_data data;
    int i, ret;

    // Register signal handler
    signal(SIGINT, sigint_handler);

    // Open the GPIO character device (correct for Raspberry Pi Zero)
    gpio_fd = open("/dev/gpiochip0", O_RDONLY);
    if (gpio_fd < 0) {
        perror("Failed to open /dev/gpiochip0");
        return EXIT_FAILURE;
    }

    printf("Requesting all GPIO lines as outputs...\n");

    // Prepare request: claim all pins as outputs with initial HIGH
    memset(&req, 0, sizeof(req));
    for (i = 0; i < num_pins; i++) {
        req.lineoffsets[i] = gpio_pins[i];
    }
    req.flags = GPIOHANDLE_REQUEST_OUTPUT;
    req.lines = num_pins;
    memset(req.default_values, 1, num_pins);  // Initial value = HIGH

    ret = ioctl(gpio_fd, GPIO_GET_LINEHANDLE_IOCTL, &req);
    if (ret < 0) {
        perror("Failed to get line handle");
        close(gpio_fd);
        return EXIT_FAILURE;
    }
    line_fd = req.fd;

    printf("All GPIO pins (BCM 2-27) are now under program control.\n");
    printf("Toggling HIGH/LOW every %d second(s). Press Ctrl+C to stop.\n", HOLD_TIME_SECONDS);

    // Main toggling loop
    while (running) {
        // Set all pins HIGH
        memset(&data, 1, num_pins);  // 1 = HIGH
        ret = ioctl(line_fd, GPIOHANDLE_SET_LINE_VALUES_IOCTL, &data);
        if (ret < 0) {
            perror("Failed to set pins HIGH");
            break;
        }
        printf("All pins set HIGH.\n");
        sleep(HOLD_TIME_SECONDS);

        if (!running) break;

        // Set all pins LOW
        memset(&data, 0, num_pins);  // 0 = LOW
        ret = ioctl(line_fd, GPIOHANDLE_SET_LINE_VALUES_IOCTL, &data);
        if (ret < 0) {
            perror("Failed to set pins LOW");
            break;
        }
        printf("All pins set LOW.\n");
        sleep(HOLD_TIME_SECONDS);
    }

    // Cleanup
    printf("\nReleasing GPIO resources...\n");
    if (line_fd >= 0) {
        close(line_fd);
    }
    if (gpio_fd >= 0) {
        close(gpio_fd);
    }
    printf("GPIO cleanup completed. Program terminated.\n");

    return EXIT_SUCCESS;
}

Compilation and Execution

  1. Save the code to a file (e.g., gpio_toggle_zero.c).
  2. Compile:
gcc -o gpio_toggle_zero gpio_toggle_zero.c
  1. Execute with elevated privileges:
sudo ./gpio_toggle_zero

The program will continue toggling until interrupted with Ctrl+C.

Customization Notes

  • Change HOLD_TIME_SECONDS to alter the interval.
  • Modify the gpio_pins array if a different subset of pins is required.

This implementation adheres to current Linux GPIO best practices and is fully compatible with the Raspberry Pi Zero. If you require any modifications (e.g., different timing, specific pin selection, or an alternative approach), please provide further details.

Understanding the SIGINT handler (Signal Interruption or Ctrl-C)

  • It was not really clear what was happening here so Grok4 was asked to break down the above code block because it did present a lot of abiguity:

Explanation of the Code Segment

// Register signal handler
signal(SIGINT, sigint_handler);

This line registers a custom function (sigint_handler) to handle the SIGINT signal, which is the standard signal sent to a process when the user presses Ctrl + C in the terminal.

Detailed Breakdown

SIGINT

  • SIGINT stands for "Signal Interrupt".
  • It is the signal generated by the operating system when a user wants to interrupt (stop) a running foreground program.
  • On Linux systems, including the Raspberry Pi Zero, pressing Ctrl + C sends SIGINT to the currently running process.

signal(SIGINT, sigint_handler)

  • The signal() function is a standard C library function declared in <signal.h>.
  • It tells the operating system: "Whenever this process receives a SIGINT signal, please call the function sigint_handler instead of using the default behavior."
  • The default behavior for SIGINT is to terminate the program immediately.

sigint_handler (the function defined earlier in the program)

static void sigint_handler(int sig) {
    (void)sig;          // Suppress unused parameter warning
    running = 0;        // Set flag to exit the main loop cleanly
}
  • When Ctrl + C is pressed, this function is automatically invoked by the operating system.
  • It sets the global variable running to 0.
  • The main while (running) loop then detects that running is no longer 1, exits the loop gracefully, and proceeds to the cleanup section (closing GPIO file descriptors).

Why This Is Used in the GPIO Program

Without a signal handler, pressing Ctrl + C would terminate the program abruptly. In a GPIO control program, abrupt termination can leave the GPIO lines in an undefined state — the pins might remain claimed as outputs, or the GPIO character device handle might not be properly released.

By registering the signal handler:

  • The program responds to Ctrl + C in a controlled manner.
  • It ensures the GPIO lines are released (close(line_fd) and close(gpio_fd)) before the program exits.
  • This follows good programming practice for hardware-interfacing code, preventing resource leaks and leaving the Raspberry Pi’s GPIO subsystem in a clean state.

Summary

The line

signal(SIGINT, sigint_handler);

installs a polite "shutdown" routine that is triggered when the user presses Ctrl + C. It allows the GPIO toggle program to stop the HIGH/LOW cycling, print a final status message, release all GPIO resources, and exit cleanly rather than terminating suddenly.

Would you like me to also explain any other part of the program, such as the ioctl calls, the gpiohandle_request structure, or how the HIGH/LOW toggling is actually performed at the kernel level?

Understanding the two structs (data and req)

In the above code Grok4 created two structures which were ambiguous as to what they were doing:

Here is a clear and precise explanation of the two structures used in the GPIO toggle program for the Raspberry Pi Zero.

1. struct gpiohandle_request req;

This structure is the primary request object used to claim (request) one or more GPIO lines from the kernel via the modern GPIO character device interface (/dev/gpiochip0).

It tells the kernel:

  • Which specific GPIO pins (lines) you want to control.
  • How you want to use them (input or output, active-low, etc.).
  • The initial values (if outputs).
  • An optional consumer label for debugging.

Key members of struct gpiohandle_request (as defined in <linux/gpio.h>):

__u32 lineoffsets[GPIOHANDLES_MAX];
An array that holds the BCM GPIO numbers (offsets) of the pins you wish to control. In the program, this is populated with the values from the gpio_pins[] array (e.g., 2, 3, 4, ..., 27).

__u32 lines;
The actual number of lines being requested (in this program, 26).

__u32 flags;
Configuration flags. In the program, it is set to GPIOHANDLE_REQUEST_OUTPUT, which instructs the kernel to configure all requested pins as outputs.

__u8 default_values[GPIOHANDLES_MAX];
The initial logic level for each output pin when the request is granted. The program uses memset(req.default_values, 1, num_pins); to start all pins HIGH (logic 1, ~3.3 V).

char consumer_label[GPIO_MAX_NAME_SIZE];
An optional string to identify who is using the GPIO lines (e.g., "gpio_toggle_zero"). It is left zeroed in this program.

int fd; (output from kernel)
After a successful ioctl(gpio_fd, GPIO_GET_LINEHANDLE_IOCTL, &req);, the kernel fills this field with a new file descriptor. This req.fd (stored as line_fd in the program) is then used for all subsequent read/write operations on the pins.

In short, gpiohandle_request is used once at startup to obtain exclusive control over the GPIO pins as outputs.

2. struct gpiohandle_data data;

This is a much simpler structure used repeatedly to set or get the actual logic levels (HIGH or LOW) of the claimed GPIO lines.

Definition (from <linux/gpio.h>):

struct gpiohandle_data {
    __u8 values[GPIOHANDLES_MAX];
};
  • __u8 values[GPIOHANDLES_MAX];
    An array where each element corresponds to one GPIO line requested earlier.
  • 0 = LOW (0 V)
  • 1 = HIGH (3.3 V)
  • Any non-zero value is treated as HIGH when setting.

How it is used in the program:

To drive all pins HIGH:

memset(&data, 1, num_pins);   // Fill the values array with 1
ioctl(line_fd, GPIOHANDLE_SET_LINE_VALUES_IOCTL, &data);

To drive all pins LOW:

memset(&data, 0, num_pins);   // Fill the values array with 0
ioctl(line_fd, GPIOHANDLE_SET_LINE_VALUES_IOCTL, &data);

This structure does not contain pin numbers or configuration — it only carries the desired state values. The kernel already knows which pins to affect because the handle (line_fd) was obtained from the earlier gpiohandle_request.

Summary of Their Roles in the Program

  • struct gpiohandle_request req; → Setup / Claim phase (performed once). It asks the kernel for ownership of the pins and configures them as outputs.
  • struct gpiohandle_data data; → Operating phase (performed in the loop). It carries the actual HIGH (1) or LOW (0) values that are applied to all the claimed pins.

This design follows the official Linux GPIO character device API (v1), which is the recommended, non-deprecated method for user-space GPIO control on the Raspberry Pi Zero and other models.

Conclusion

  • Practice, practice, practice.  There is a lot of moving parts in the above code and you may not get the whole structure the first time.  That's ok.  Study it, then study it again, write some notes on it, then come back to it again.
  • Having a powerful LLM  can be a game changer - and you do not need a heavy budget to do it.  Right now nemotron from Nvidia is completely free and available at openrouter.ai. It is a 32b sized model that is completely basically free. So try it out, it might not be as good as Grok 4, but it will defintely be immensely helpful.
