Micro-Python / Repl Setup W/Pycharm in a Linux Envirnoment

In this quick guide we go over setting up the Repl Enviroment for Pycharm for quick little one-off programs on your edge MCU's

Micro-Python / Repl Setup W/Pycharm in a Linux Envirnoment

Music of the Day: Night Music for Work

  • Micropython is a tiny version of Python allowing you to run a 'sub-python.'
  • Sadly - No Step-Debugging yet..
  • It is designed to install directly onto small MCU's such as the raspberry pi-pico, etc etc.
  • The site (and a good plethora of board suppport) is available here:

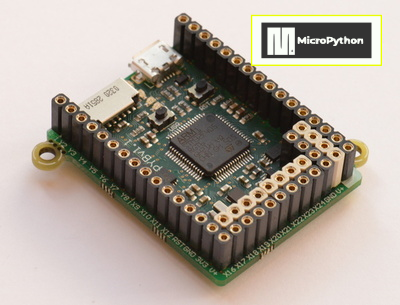

MicroPython - Python for microcontrollers
MicroPython is a lean and efficient implementation of the Python 3 programming language that includes a small subset of the Python standard library and is optimised to run on microcontrollers and in constrained environments.
  • Once you have micropython installed it will supply a 'REPL' which is effectively its own built in debugger over one of the /dev/ttyACM0 ports.

Part 1. Install micropython to the Raspberry Pi-Pico

We are working with a standard Raspberry Pi-Pico

  • One can dowload the MicroPython here (select the one that is applicable)
  • In linux installing your .uf2 file is a bit different. Open a terminal and type:
watch lsblk
  • Before you plug in your pico
  • After you plug in your pico (if no program has been installed prior)
  • Mounting it is as easy as (requring sudo)
sudo mount /dev/sda1 /raspa
  • If you have anything installed you will need to hold down 'bootsel' while you power it then release the button.
sudo cp RPI_PICO-20240602-v1.23.0.uf2 /raspa

Finding your MicroPython installed .uf2 system

sudo dmesg -w

When you plug it in you will see:

Step 2: Confirm Micropython REPL works.

  • Install minicom
sudo apt install minicom

Manual Link Check to minicom.

sudo minicom -D /dev/ttyACM0 -b 115200

Now that we have proven our downstream to the chip we can focus on the Pycharm side.

Step 3. Adding your IDE Pycharm and Setting the Enviroment.

  • Install the marketplace plugin (MicroPython)
  • At this point you make a standard python project and then simply enable your micropython:

Pycharm is good in that it will install some associate packages required:

Setup some boiler code (main.py)

  • Note we are free of CMakeLists.txt the CMake enviroment and that makes things simpler.
import machine
import sys
import utime

# Pin definitions
repl_button = machine.Pin(0, machine.Pin.IN, machine.Pin.PULL_UP)

# Wait for button 0 to be pressed, and then exit
while True:

    # If button 0 is pressed, drop to REPL
    if repl_button.value() == 0:
        print("Dropping to REPL")

    # Do nothing

Setup your Run/Debug Configuration as:

Under your Languages & Framework / Micropython set:

You may need to change your permissions:

sudo chmod 776 /dev/ttyACM0

Hit your run button, and you will see the program automatically pushed up.


  • Why go backwards after writing so many documents on the more advanced CMSIS-DAP Clion Stepping Debugger?
  • What is very handy is if you need a simple 'tool-builder' that will give you some quick bits  this is a why to do it!
